| Network Security: | SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway |
| Guest Network: | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| WiFi Encryption: | WPA2-PSK
WPA2-PSK/WPA-PSK
WPA3-Personal
WPA3-Personal/WPA2-PSK
WPA2-Enterprise
WPA/WPA2-Enterprise encryptions |
| WI-FI Standards: | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds: | AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range: | 2-3 Bedroom Houses
4× Fixed High-Performance Antennas |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | Beamforming |
| Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity: | High
Dual-Band
Allocate devices to different bands for optimal performance |
| OFDMA | Simultaneously communicates with multiple Wi-Fi 6 clients |
| Airtime Fairness | Improves network efficiency by limiting excessive occupation |
| 4 Streams | Connect your devices to more bandwidth |
| Working Modes: | Router Mode
Access Point Mode |

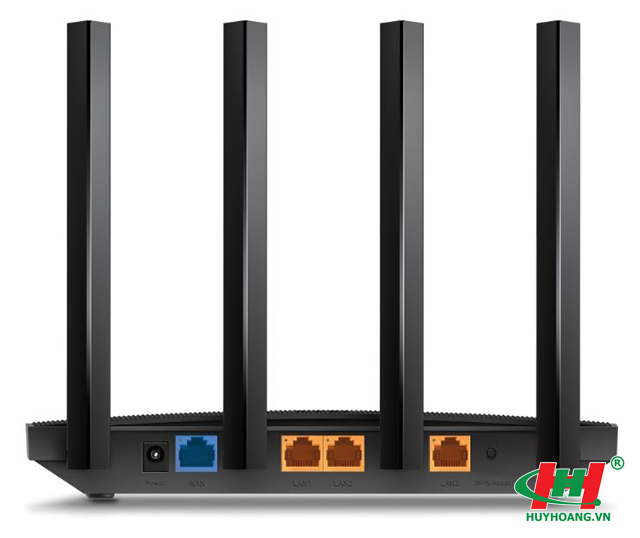

| Ethernet Ports: | 1× Gigabit WAN Port
3× Gigabit LAN Ports |
| Buttons: | WPS/Wi-Fi Button
Reset Button |
| Power: | 12 V ⎓ 1 A |
| Protocols: | IPv4
IPv6 |
| Parental Controls: | URL Filtering
Time Controls |
| WAN Types: | Dynamic IP
Static IP |
| Quality of Service: QoS by Device Cloud Service: | Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding: | Port Forwarding
Port Triggering
DMZ
UPnP |
| IPTV: | IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP: | Address Reservation
DHCP Client List
Server |
| DDNS: | TP-Link
NO-IP
DynDNS |
| Management: | Tether App
Webpage |
| System Requirements: | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) |
| Certifications: | FCC, CE, RoHS |
| Environment: | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
TEST DATA |
| WiFi Transmission Power: | CE: <20dBm(2.4 GHz); <23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity: | 5 GHz:
11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm
2.4 GHz:
11g 6Mbps: -96 54Mbps: -80
HT20-MCS0: -97 MCS7: -78
HT40-MCS0: -94 MCS7: -75 |
| Dimensions | 8.5 × 4.6 ×1.3 in
(215 × 117 × 32 mm) |

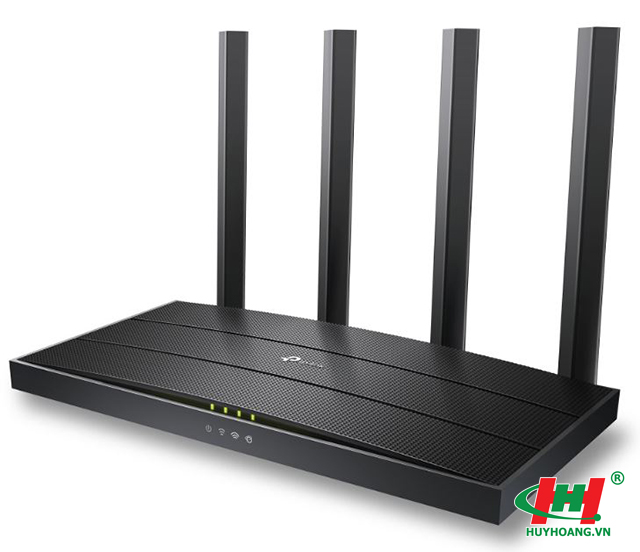

| Package Contents: | Wireless Router Archer AX12
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
