Model |
XP-D4601B |
Printing Features |
|
Resolution |
203 DPI |
Printing method |
Direct Thermal |
Max.print speed |
152 mm (6″) / s Max. |
Max.print width |
104 mm (4.09”) |
Max.print length |
1778 mm(70”) |
Media |
|
Media type |
Continuous, gap, black mark, fan-fold and punched hole |
Media width |
25.4 mm ~ 118 mm (1.0″-4.6″) |
Media thickness |
0.06~0.254 mm (2.36~10mil) |
Media core diameter |
25.4 ~ 76.2 mm (1 “~ 3 “) |
Label length |
10 mm ~1778 mm |
Performance Features |
|
Processor |
32-bit CPU |
Memory |
8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded to Max. 4
GB |
Interface |
Standard version: USB
Optional:Lan/WIFI/Bluetooth/TF card |
Sensors |
- Gap sensor - Cover opening sensor - Black mark sensor - Ribbon sensor |
Fonts/Graphics/Symbologies |
|
Internal fonts |
8 alpha-numeric bitmap fonts, Windows fonts are downloadable from
software. |
1D bar code |
Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar,
Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5)
digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 |
2D bar code |
CODABLOCK F mode, DataMatrix, Maxicode, PDF-417, Aztec, MicroPDF417,
QR code, RSS Barcode (GS1 Databar) |
Rotation |
0°、90°、180°、270° |
Emulaion |
TSPL、EPL、ZPL、DPL |
Physical Features |
|
Dimension |
282 mm (L) x 232 mm (W) x 171 mm (H) |
Weight |
1.31 kg |
Reliability |
|
Warranty |
One year |
Print head life |
30 km |
Software |
|
Driver |
Windows/ Linux/ Mac |
SDK |
Windows/ Android/ iOS |
Power supply |
|
Input |
AC 110-240V |
Output |
DC 24V-2.5A |
Options |
|
Factory Options |
- Lan - Bluetooth - WIFI - TF card - RTC - Peeling machine - Cutter |
Dealer Options |
- External
paper roll holder - Paper roll spindle - Extension board for external
paper roll holder |
Environmental Conditions |
|
Operation environment |
5 ~ 40°C(41~104°F),Humidity: 25 ~ 85% no condensing |
Storage environment |
-40 ~ 60°C(-40~140°F),Humidity: 10 ~ 90% no condensing |

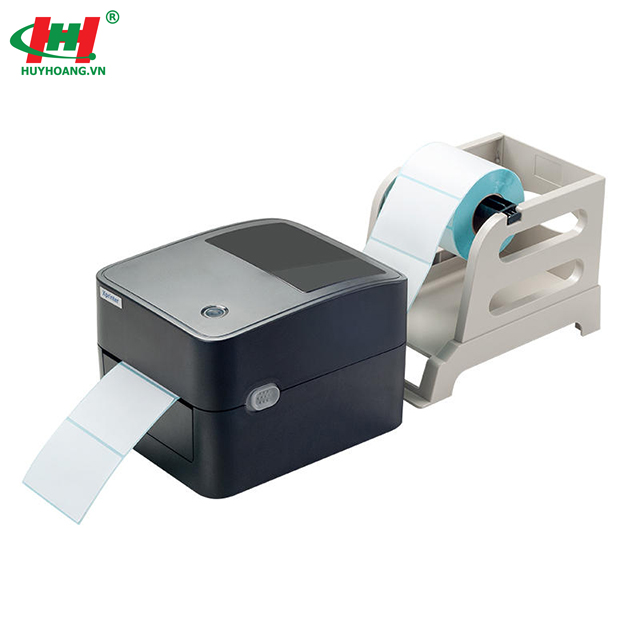

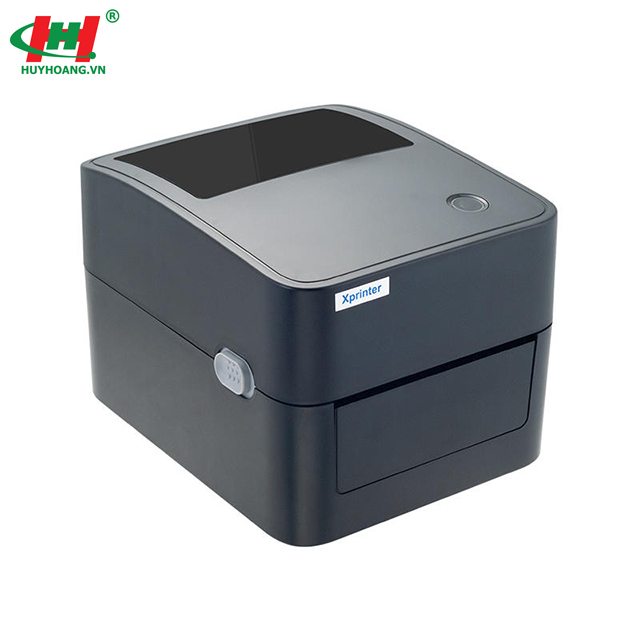

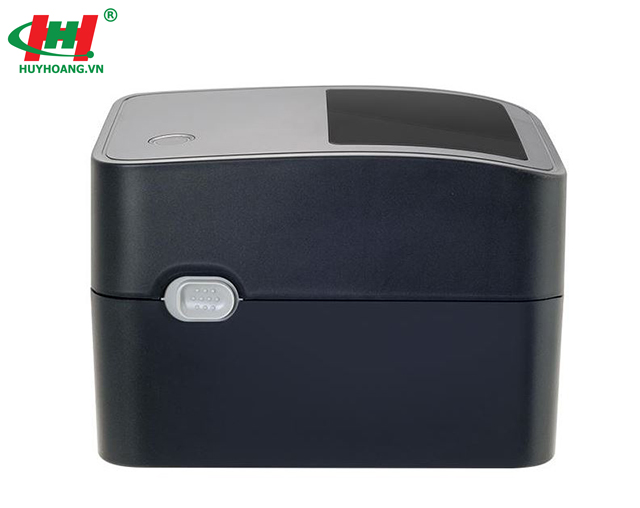

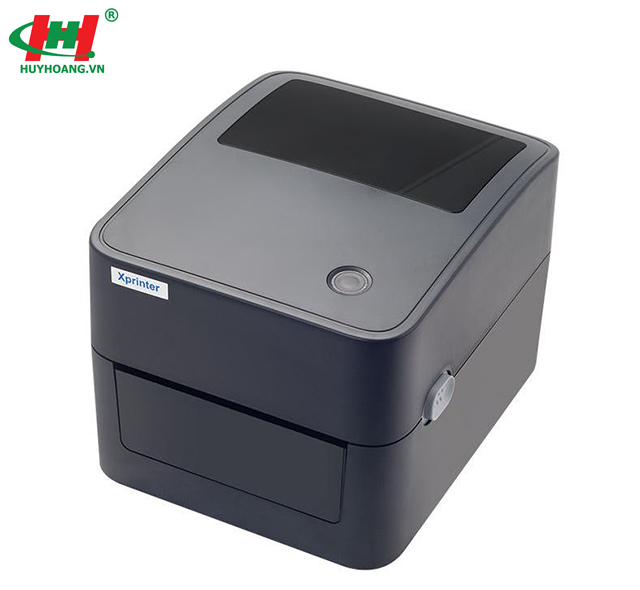

Xprinter XP-D4601B là mẫu máy in nhãn 4 inch mới của Xprinter. Thiết kế vỏ của nó trông rất thanh lịch. Có một thân máy tiết kiệm không gian nhưng vẫn giữ được một hộp chứa giấy lớn. Một nút đa chức năng và một chỉ báo hai màu, thao tác đơn giản.
Máy in mã vạch dạng tờ, Máy in mã vạch nhiệt trực tiếp. Máy in tem nhãn vận chuyển Xprinter D4601B có thiết kế đơn giản.
