Chi tiết sản phẩm
Máy đo công suất quang và soi sợi quang, test dây mạng, dò dây cáp mạng, đo khoảng cách dây mạng, PoE NOYAFA NF-8508
Đo công suất quang: bước sóng 850/980/1310/1490/1550/1625nm, dải công suất -60~8dBm
Soi cáp quang (VFL: Visual Fault Locator)
Kiểm tra dây cáp mạng (RJ45): đoản mạch, ngắn mạch, chéo cáp.
QC Test: kiểm tra đầu RJ45.
Đo chiều dài dây cáp mạng.
Dò dây cáp mạng
Tìm kiếm port (Port Flashing): xác định vị trí port trên switch bằng cách sáng nhấp nháy liên tục port trên switch.
PoE :xác định thông tin thiết bị cấp nguồn: 802.3af hay 802.at hay non-standard, điện áp..
Chức năng kiểm tra điện áp không tiếp xúc (Non-Contact Voltage) phát hiện điện áp AC
Pin Lithium 3.7v 1500mAh
Bảo hành 12 tháng

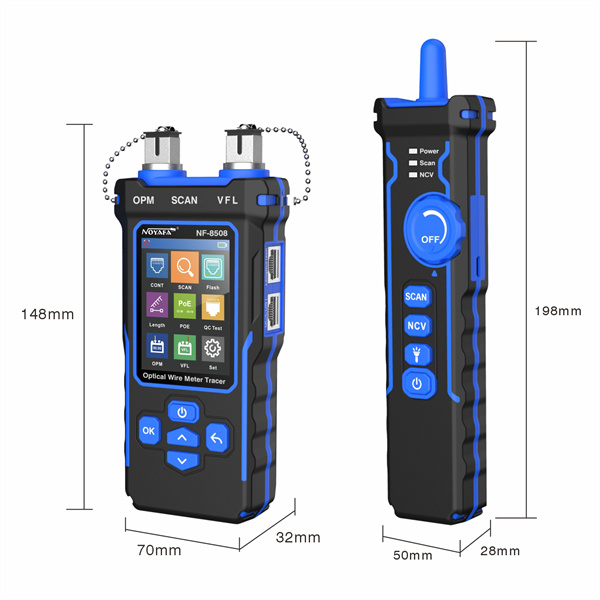

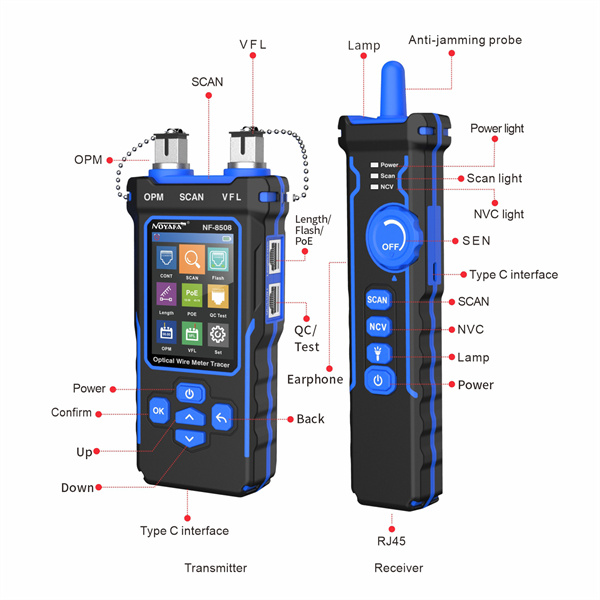

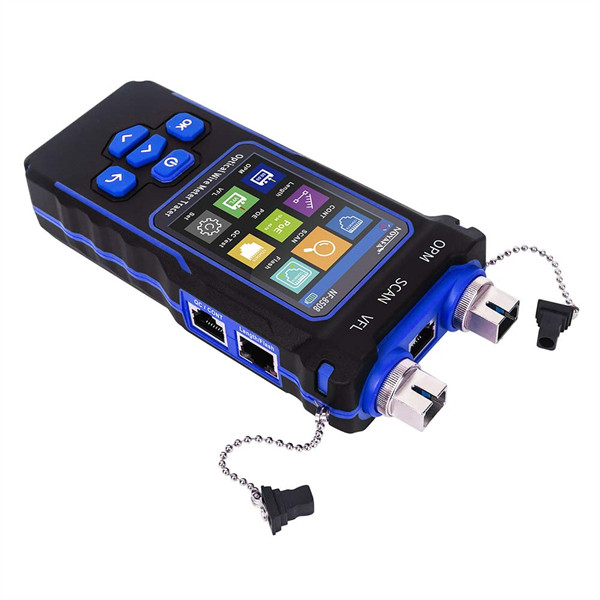

Noyafa NF-8508 Optical Fiber Meter with Visual Fault Locator, OPM, Cable Detector, Wire Map, CAT5, CAT6Length Measuring, PoE Testing, Port Flash

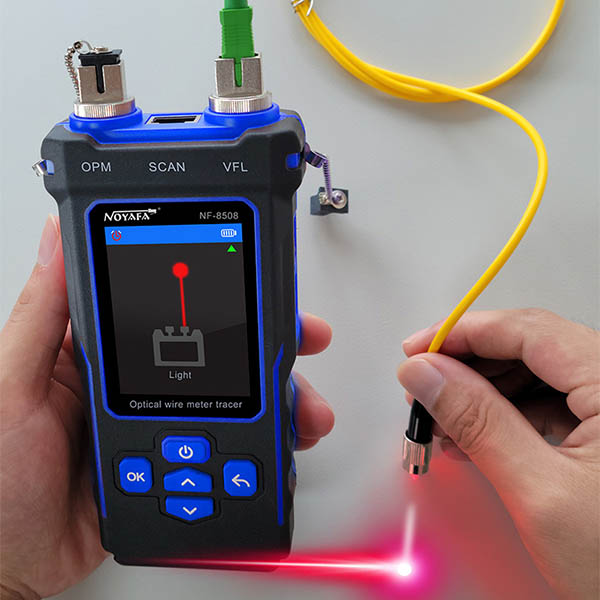

Optical Power Meter & Visual Fault Locator: It can measure 7 standard wavelengths, 850/1300/1310/1490/1550/1625/1650, test range -70dBm~+10dBm, 10mw red light source.

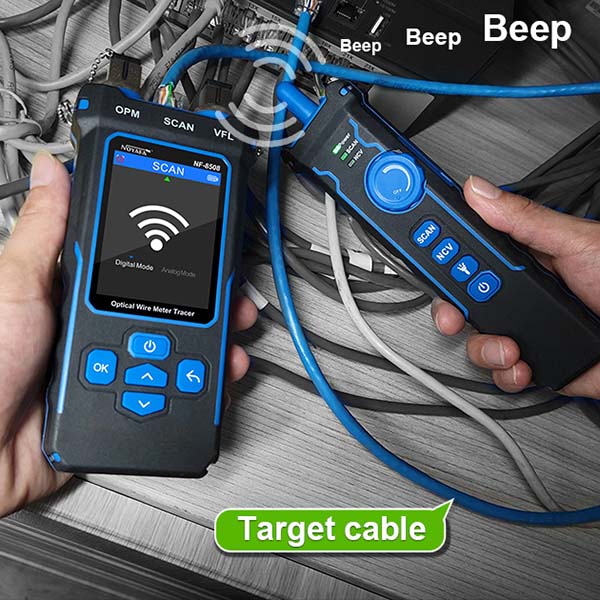

Anti-jamming Receiver: You can quickly and accurately locate a target wire in a bunch of wires with the receiver's anti-jamming probes, NCV, and adjustable sensitivity. For dim work environments, LED lights are ideal.
Detect Hidden Cables: Adjust the receiver's sensitivity to locate cables deep in the ground, ceiling, or wall.
LAN cable test: Tests the faults of short circuit, open circuit, and cross in a LAN network.

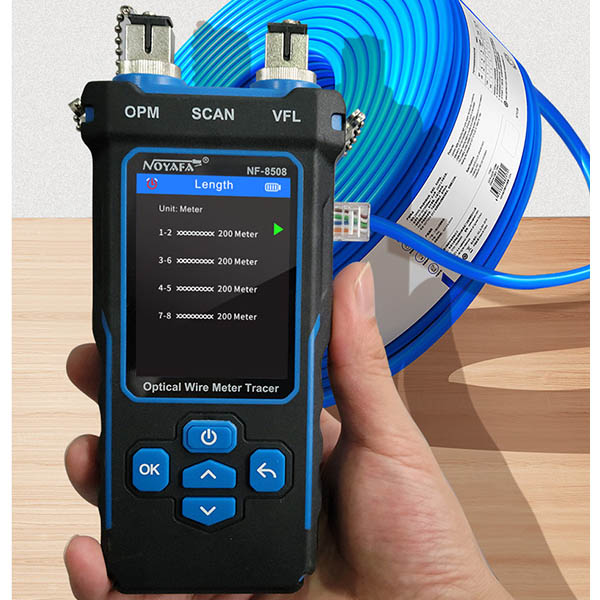

Length Test: Measures the length of CAT5 / CAT6 cables up to 200m, it can be measured in meters, yards, or feet.
PoE Test: It can test the information of standard PoE device, such as PoE voltage, power supply polarity, power supply mode and also the type of PSE(af or at standard)

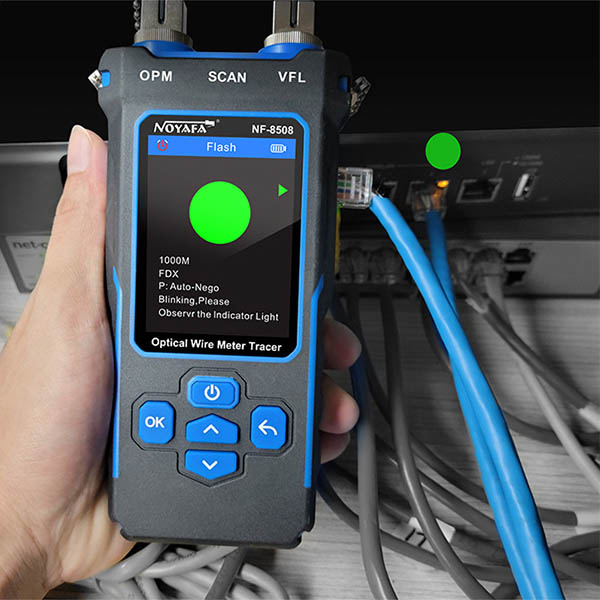

Port Flashing: Determine the corresponding connection port by observing the same blink frequency on the switch/router port where the target cable is connected
Data Visualization: The new generation of cable testers and locators has a high-definition screen that displays all parameters and functions visually. More compact and powerful than its predecessor

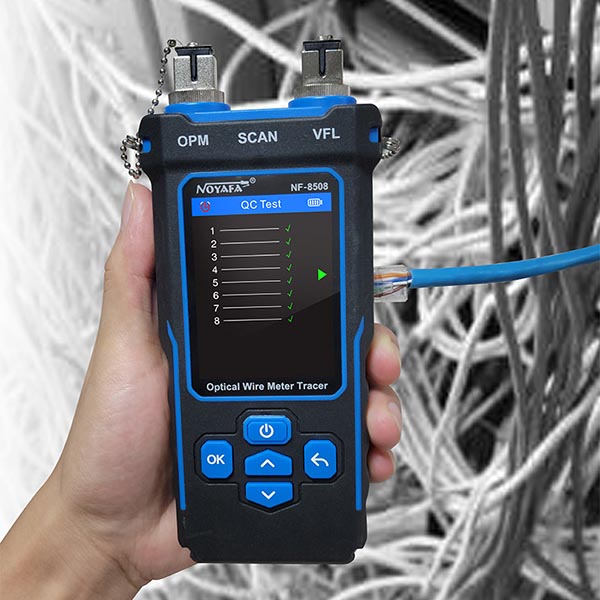

QC Test: Tests the quality of the crimping of crystal heads.
Battery life is longer: Set backlight off time and auto shutdown time, and charge the built-in lithium battery with a universal type-C cable.
Certification: Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
100% Affordable: Manufactured in China and a lot cheaper than competitor products with similar quality. Like Fluke
